HCPL-4200-00E

Optically Coupled, 20 mA Current Loop Receiver, Input Threshold Hysteresis, -2500Vrms, SOP8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.79~1.88 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.79~1.88

PartNumber:: HCPL-4200-00E

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tienne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-18

From Other Seller

Part Number:HCPL-4200-00E
US $1.79 - 1.88
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HCPL-4200-00E is a 20 mA Current Loop Receiver. The HCPL-4200-00E is designed to operate as a receiver in equipment using the 20 mA Current Loop. 20 mA current loop systems conventionally signal a logic high state by transmitting 20 mA of loop current(MARK), and signal a logic low state by allowing no more than a few milliamperes of loop current(SPACE). The applications of the HCPL-4200-00E are Isolated 20 mA Current, Computer Peripherals, Industrial Control Equipment, Data Communications Equipment.

Parametrics

HCPL-4200-00E absolute maximum ratings: (1)Storage Temperature:-55℃ to +125℃; (2)Operating Temperature:-40℃ to +85℃; (3)Lead Solder Temperature:260℃ for 10 s (1.6 mm below seating plane); (4)Supply Voltage:0V to 20V; (5)Average Input Current:-30mA to 30mA; (6)Peak Transient Input Current:0.5A; (7)Enable Input Voltage:-0.5V to 20V; (8)Output Voltage:-0.5V to 20V; (9)Average Output Current:25mA; (10)Input Power Dissipation:90mW; (11)Output Power Dissipation:210mW; (12)Total Power Dissipation:255mW.

Features

HCPL-4200-00E features: (1)Data Output Compatible with LSTTL, TTL and CMOS; (2)20 K Baud Data Rate at 1400 Metres Line Length; (3)Guaranteed Performance over Temperature (0℃ to 70℃); (4)Guaranteed On and Off Thresholds; (5)LED is Protected from Excess Current; (6)Input Threshold Hysteresis; (7)Three-State Output Compatible with Data Buses; (8)Internal Shield for High Common Mode Rejection; (9)Safety Approval UL Recognized -2500 Vrms, for 1 Minute CSA Approved; (10)Optically Coupled 20 mA Current Loop Transmitter, HCPL-4100, Also Available.

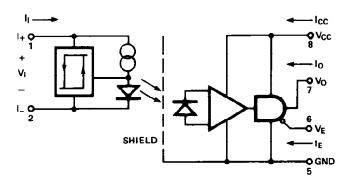

Diagrams
