ADS8320E

16-Bit, High-Speed, 2.7V to 5V microPower Sampling, ANALOG-TO-DIGITAL CONVERTER, MSOP8, 100kHz SAMPLING RATE

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~8.43 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~8.43

PartNumber:: ADS8320E

Brand:: Texas Instruments - TI | Pack: MSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tienne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-20

From Other Seller

Part Number:ADS8320E
US $8.00 - 8.43
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

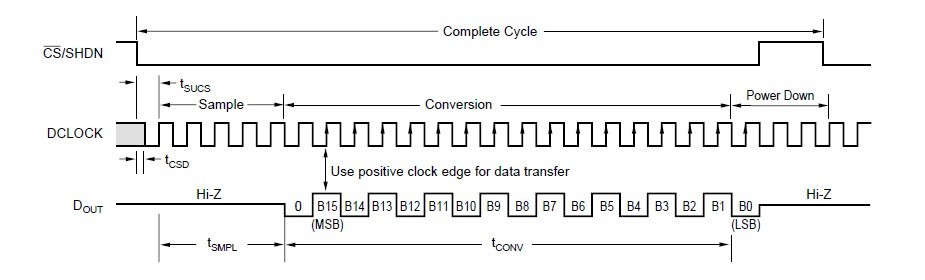

The ADS8320E is a 16-bit sampling analog-to-digital converter (A/D) with guaranteed specifications over a 2.7V to 5.25V supply range. It requires very little power even when operating at the full 100kHz data rate. At lower data rates, the high speed of the device enables it to spend most of its time in the power-down mode—the average power dissipation is less than 100mW at 10kHz data rate. The ADS8320E also features operation from 2.0V to 5.25V, a synchronous serial (SPI/SSI compatible) interface, and a differential input. The reference voltage can be set to any level within the range of 500mV to VCC.

Parametrics

ADS8320E absolute maixmum ratings: (1)VCC: +6V; (2)Analog Input: -0.3V to (VCC + 0.3V); (3)Logic Input: -0.3V to 6V; (4)Case Temperature: +100℃; (5)Junction Temperature: +150℃; (6)Storage Temperature: +125℃; (7)External Reference Voltage: +5.5V.

Features

ADS8320E features: (1)100kHz SAMPLING RATE; (2)MICRO POWER: 1.8mW at 100kHz and 2.7V; 0.3mW at 10kHz and 2.7V; (3)POWER DOWN: 3mA max; (4)MSOP-8 PACKAGE; (5)PIN-COMPATIBLE TO ADS7816 AND ADS7822; (6)SERIAL (SPI/SSI) INTERFACE.
