Product Summary
The TL072CDR is a low-noise jfet-input operational amplifier. The JFET-input operational amplifier TL072CDR is similar to the TL08x series, with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL07x series ideally suited for high-fidelity and audio preamplifier applications. Each amplifier features JFET inputs of the TL071 (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip. The TL072CDR is characterized for operation from 0℃ to 70℃. The I-suffix devices are characterized for operation from -40℃ to 85℃. The M-suffix devices are characterized for operation over the full military temperature range of -55℃ to 125℃.
Parametrics
TL072CDR absolute maximum ratings: (1)Supply voltage: VCC+ 18 V; (2)VCC: 18 V; (3)Differential input voltage, VID: ±30 V; (4)Input voltage, VI: ±15 V; (5)Duration of output short circuit: Unlimited; (6)Operating virtual junction temperature, TJ: 150℃; (7)Case temperature for 60 seconds: FK package: 260℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: J, JG, or W package: 300℃; (9)Storage temperature range, Tstg: 65℃ to 150℃.
Features
TL072CDR features: (1)Low Power Consumption; (2)Wide Common-Mode and Differential Voltage Ranges; (3)Low Input Bias and Offset Currents; (4)Output Short-Circuit Protection; (5)Low Total Harmonic Distortion 0.003% Typ; (6)Low Noise Vn = 18 nV/√Hz Typ at f = 1 kHz; (7)High Input Impedance JFET Input Stage; (8)Internal Frequency Compensation; (9)Latch-Up-Free Operation; (10)High Slew Rate 13 V/μs Typ; (11)Common-Mode Input Voltage Range Includes VCC+.

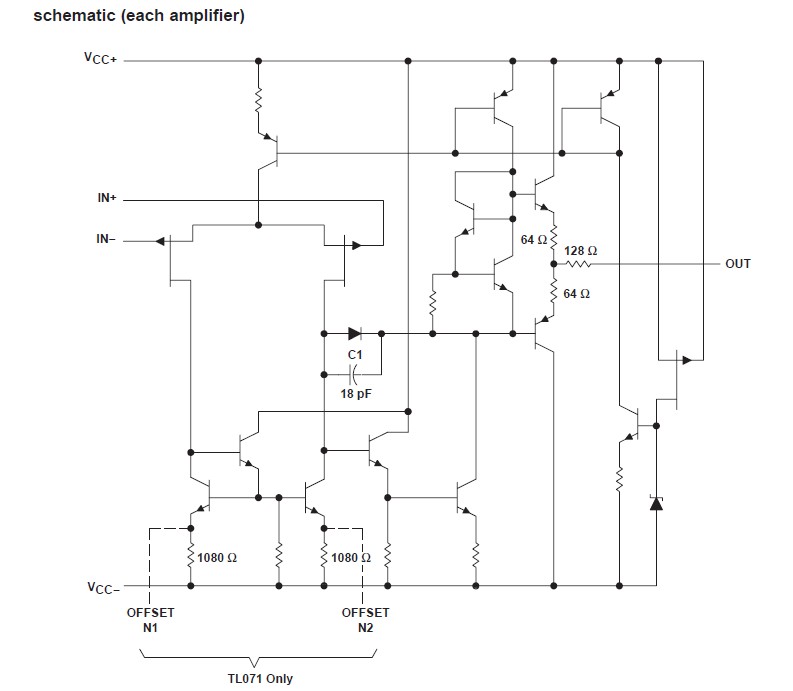

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TL072CDR |
Texas Instruments |
Operational Amplifiers - Op Amps Dual JFET Op Amp |
Data Sheet |
|
|
||||||||||||
|
TL072CDRE4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Low-Noise JFET-Input |
Data Sheet |
|
|
||||||||||||
|
TL072CDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Low-Noise JFET-Input |
Data Sheet |
|
|
||||||||||||
